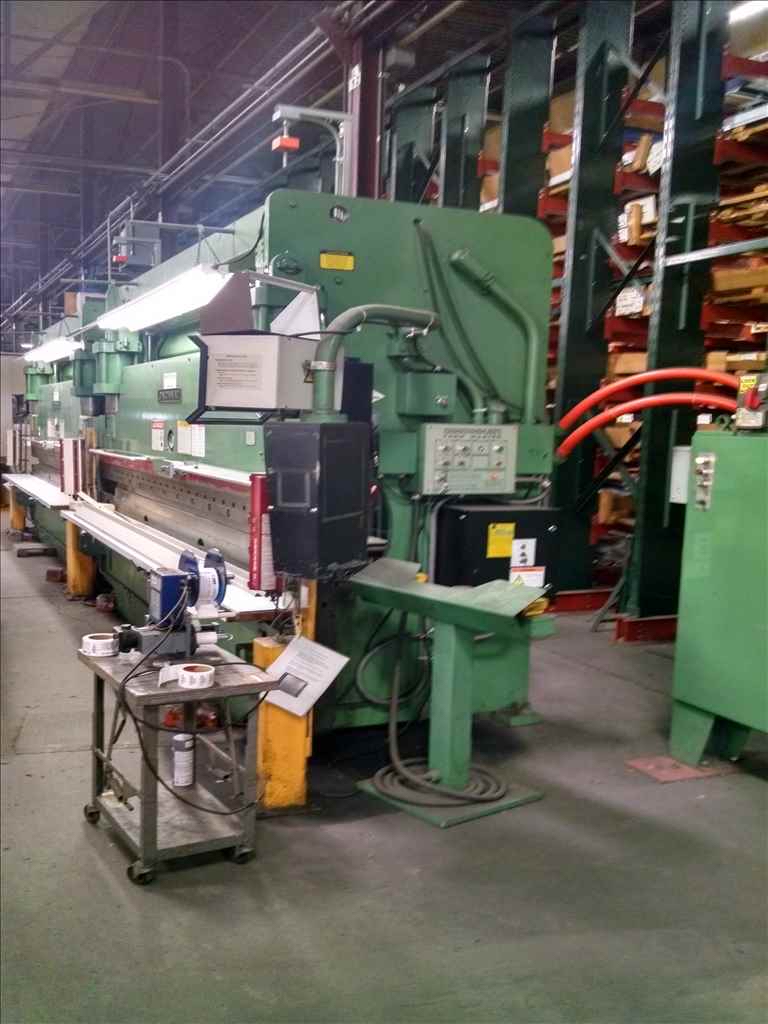

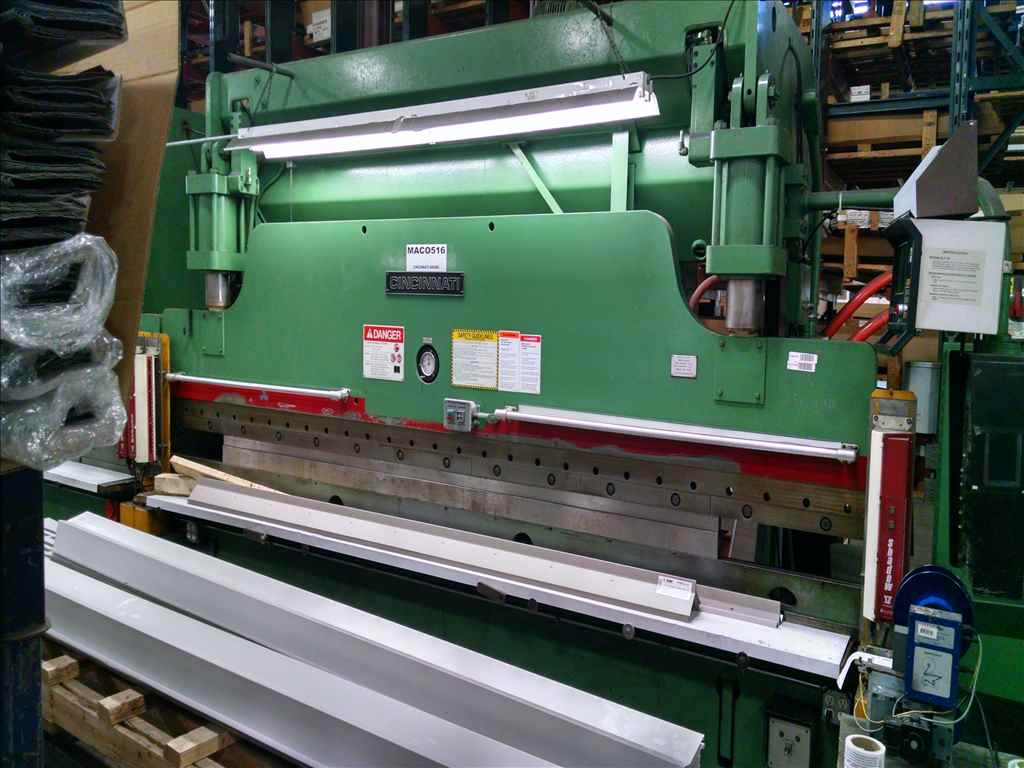

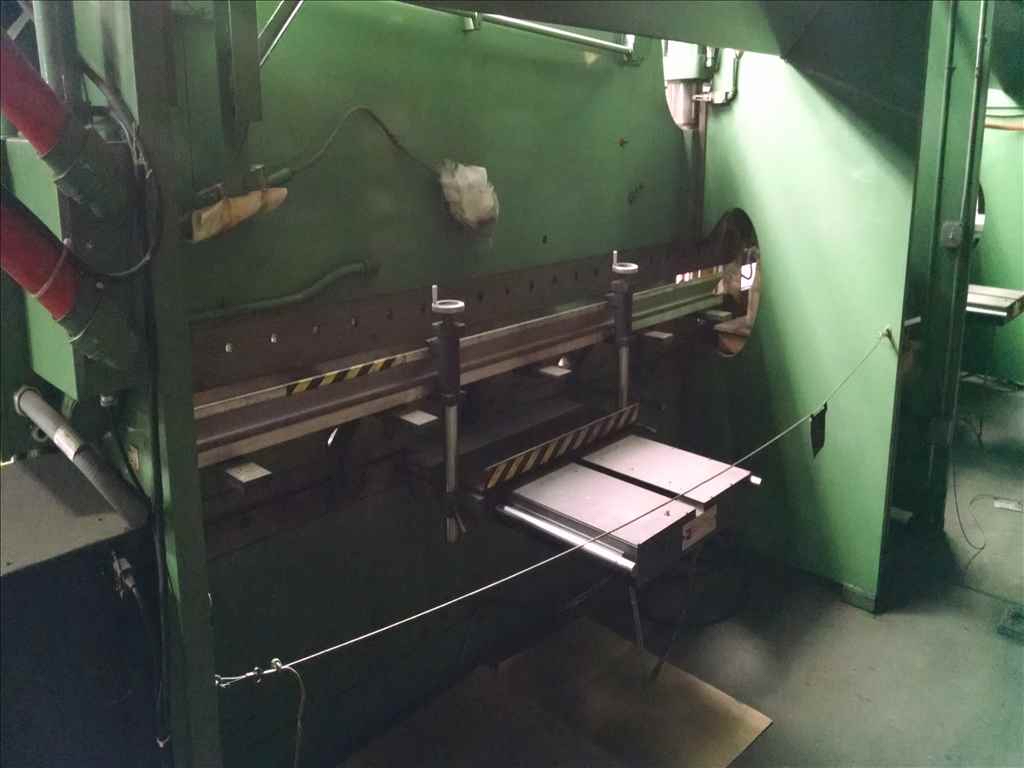

90 Ton X 28’ Cincinnati FM Tandem Hydraulic Press Brake

Pre Owned 90 Ton  X 28’ Cincinnati FM Tandem Hydraulic Press Brakes

GENERAL SPECIFICATIONS
Capacity                         90 TONS
Overall Length of Bed & Ram                28’
Distance Between Housings    `            10’6 3/4” Each Brake
Stroke                            8”
Open Height                        15”
Closed Height                        7”
Throat Clearance                    20”
Speeds
Approach                    312 INCH PER MINUTE
Form                        78 & 15 INCH PER MINUTE
Return                        57 & 294 INCH PER MINUTE
Back Gage Speeds                    X- AXIS’, 1200 INCH PER MINUTE
Width at Top of Bed                    3 ½”
Main Motor Horsepower                17.5

EQUIPPED WITH
Hurco Autobend 7 2 Axis 24” Programmable Back gage  (X & Manual R)
Electric Foot Switch
Pedestal Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight Each Brake         22000 Lbs Ea   44000 lbs
Approximate Overall Dimensions             28” L X 114‘ H X 58” W
