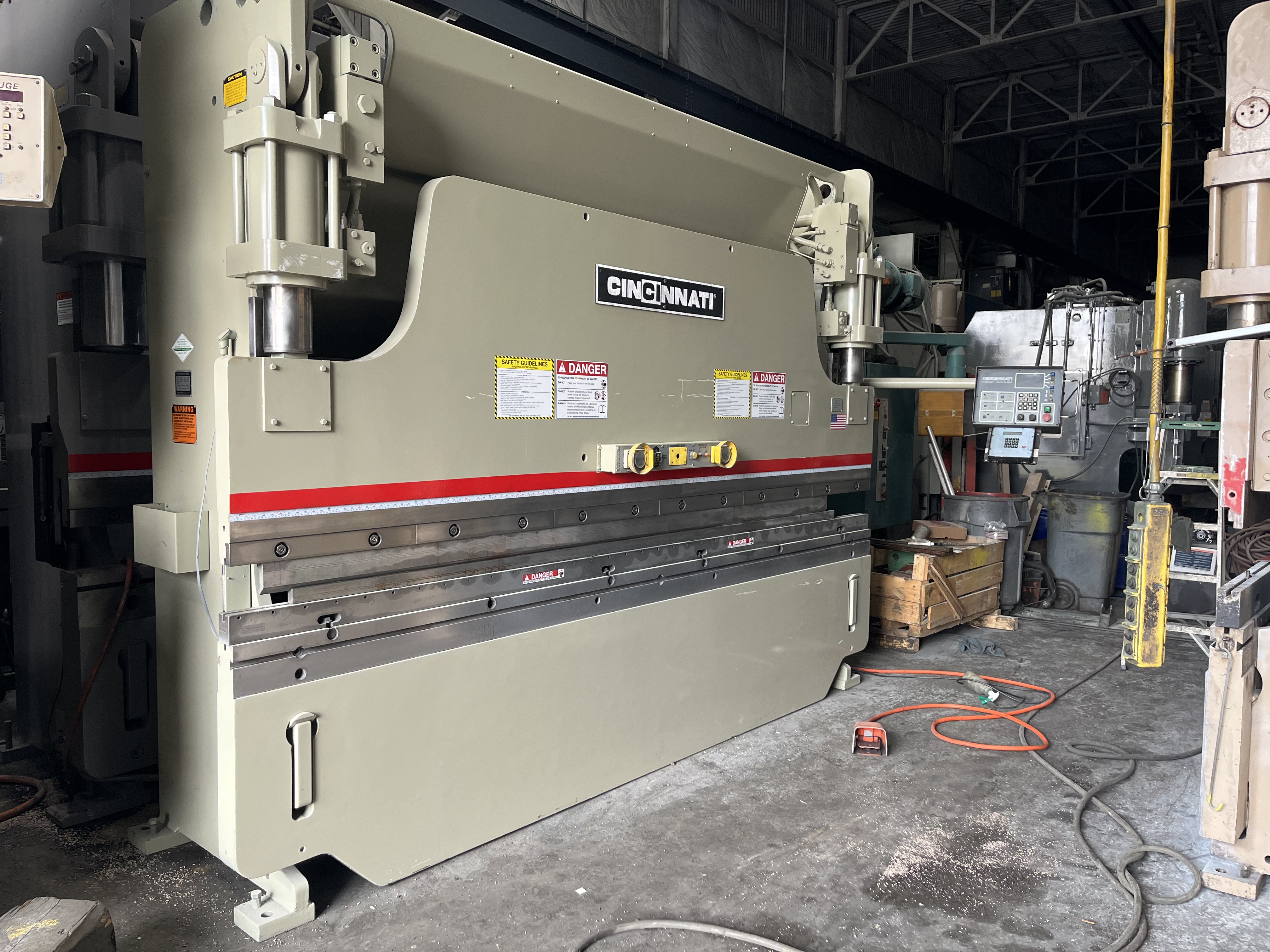

90 Ton X 12 Cincinnati Model 90CBII CNC Press Brake

Pre Owned Cincinnati Model 90CBII CNC Press Brake

GENERAL SPECIFICATIONS
Capacity                         90 TONS
Overall Length of Bed & Ram                12’
Distance Between Housings    `            10’6 3/4”
Stroke                            8”
Open Height                        15”
Closed Height                        7”
Throat Clearance                    7”
Speeds
Approach                    260 Inch Per Minute
Form                        10-20-80 Inch Per Minute
Return                        280 Inch Per Minute
Width at Top of Bed                    3 ½”
Main Motor Horsepower                15

EQUIPPED WITH

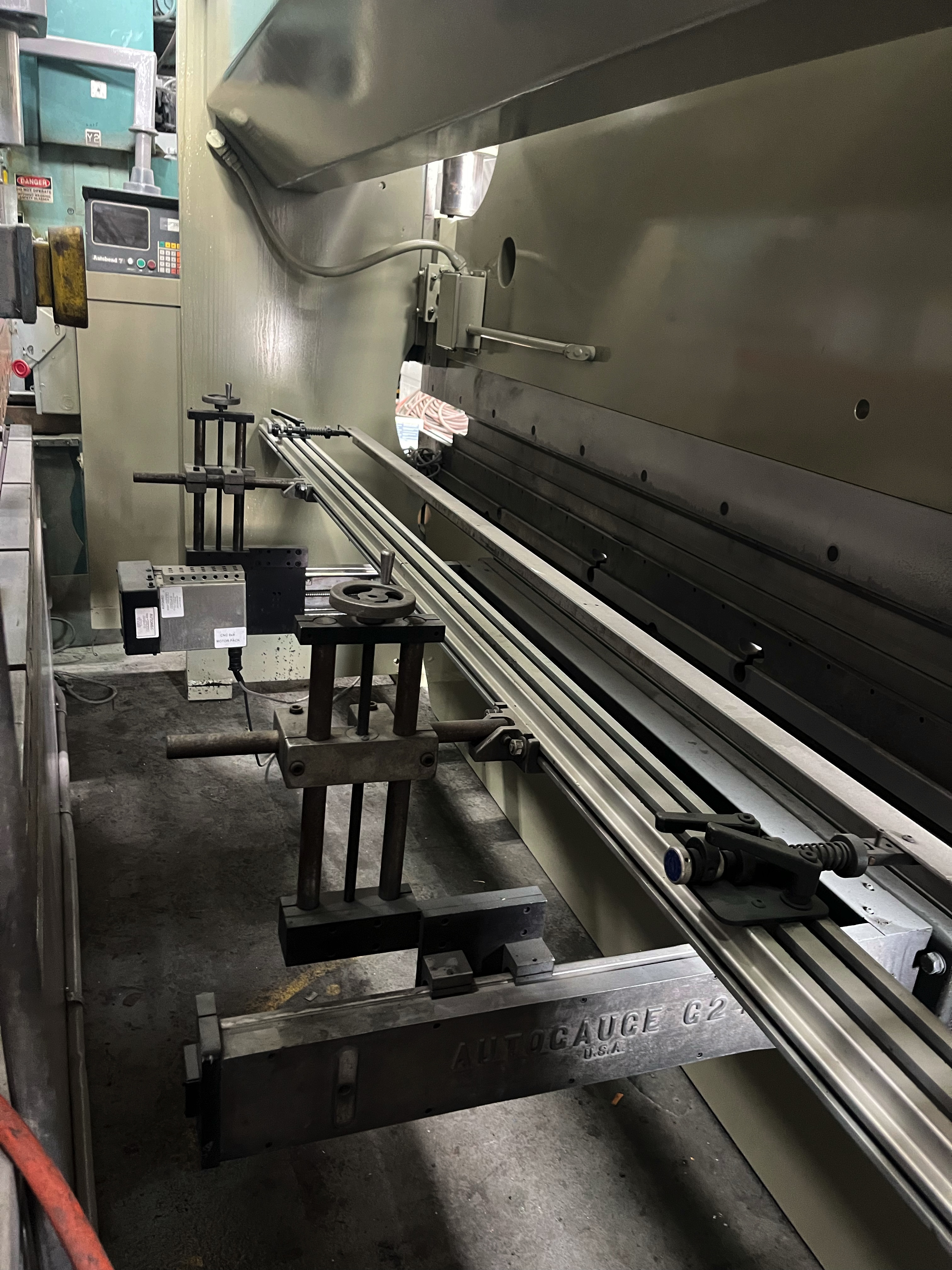

 Automec CNC 9X9 Back Gauge
Transducer Positioned Feedback
Narrow Filler Block
Electric Foot Switch
Pedestal Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight                 18300 Lbs
Approximate Overall Dimensions             12’6.5” L X 50”FB X 110” H
