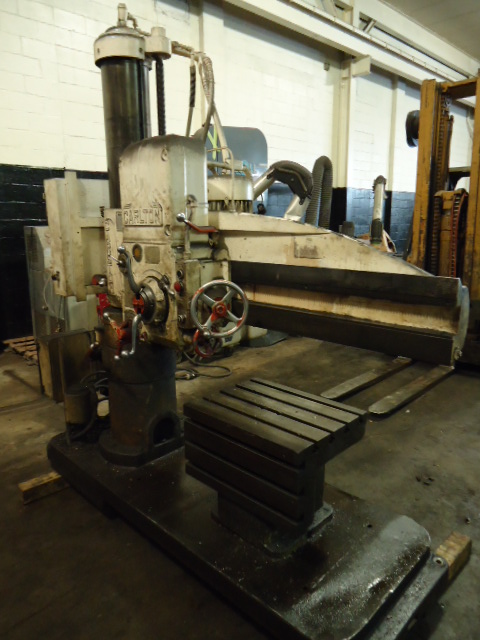

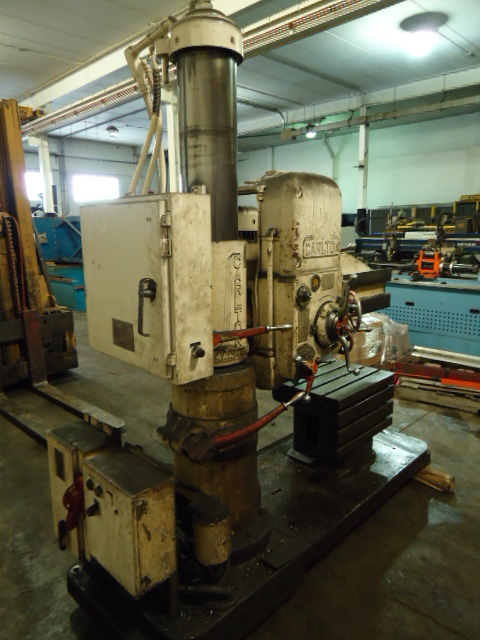

Carlton 4' 9" Radial Drill New 1979

Pre Owned  1979 Carlton 4’ X 9” Radial Arm Drill
Serial Number  QA 1253

GENERAL SPECIFICATIONS

Arm Length                     4'
Column Diameter                9"
Maximum Spindle Radius             55"
Minimum Spindle Radius             16"
Maximum Spindle Base                 53"
Minimum Spindle Base                 14"
Working Surface of the Base             30" x 53"
Height of Base                     6"
Vertical Travel of Spindle In Head         12"
Bearing of Head on Arm             15"
Bearing of Arm on Column             19"
Maximum Height Over Head             98"
Height Over Column Capacity             91"
Spindle Diameter                 2 1/2"
Morse Taper in Spindle                 No. 4
Traverse of Arm on Column             27"
Traverse of Head on Arm             39"
Drills to Center of Circle             96"
Swing of Arm 67"
Feeds and Tap Leads 6 Changes        .004"to.025"
Spindle Speeds                 12 Speeds


Approximate Overall Weight                 6195 Lbs

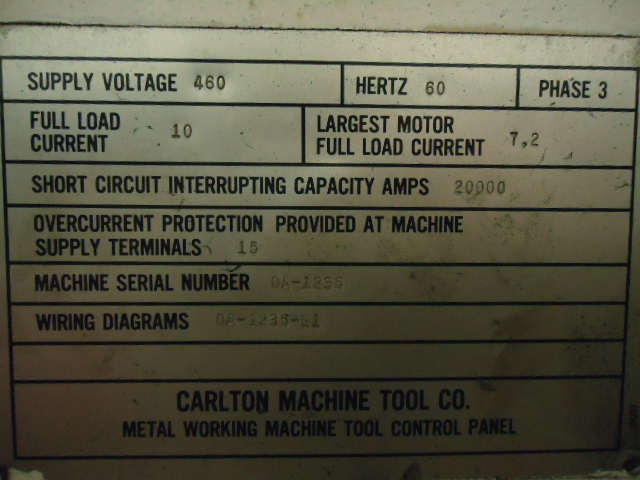

Electrics                         460/3/60
